Specification:
Parts and Materials of Metal Seated Gate Valve - Rising Stem:
| No. | Parts | Cast Iron Material | Ductile Iron Material |  |
| 1 | Body | Cast iron GJL250 | Ductile iron GJS500 | |
| 2 | Body seat ring | Cast brass | Cast brass | |
| 3 | Wedge | Cast iron GJL250 | Ductile iron GJS500 | |
| 4 | Wedge seat ring | Cast brass | Cast brass | |
| 5 | Stem | Stainless steel X20Cr13 | Stainless steel X20Cr13 | |
| 6 | Bolt | Steel grade 8.8 | Steel grade 8.8 | |
| 7 | Nut | Steel grade 8.8 | Steel grade 8.8 | |
| 8 | Bonnet gasket | Graphite | Graphite | |
| 9 | Bonnet | Cast iron GJL250 | Ductile iron GJS500 | |
| 10 | Packing | Graphite | Graphite | |
| 11 | Gland follower | Ductile iron GJS500 | Ductile iron GJS500 | |
| 12 | Nut | Steel grade 8.8 | Steel grade 8.8 | |
| 13 | Bolt | Steel grade 8.8 | Steel grade 8.8 | |
| 14 | Stem nut | Cast brass | Cast brass | |
| 15 | Handwheel | Cast iron GJL250 | Cast iron GJL250 | |
| 16 | Nut | Ductile iron GJS500 | Ductile iron GJS500 |
Dimensions (mm) of DIN3352 F4 Metal-seal Flanged End Gate Valve:
PN10
| DN | L | D | D1 | D2 | b | f | n-d | D0 | H |
| 40 | 140 | 150 | 110 | 84 | 18 | 3 | 4-19 | 160 | 245 |
| 50 | 150 | 165 | 125 | 99 | 20 | 3 | 4-19 | 160 | 255 |
| 65 | 170 | 185 | 145 | 118 | 20 | 3 | 4-19 | 160 | 295 |
| 80 | 180 | 200 | 160 | 132 | 22 | 3 | 8-19 | 160 | 330 |
| 100 | 190 | 220 | 180 | 156 | 24 | 3 | 8-19 | 200 | 385 |
| 125 | 200 | 250 | 210 | 184 | 26 | 3 | 8-19 | 200 | 458 |
| 150 | 210 | 285 | 240 | 211 | 26 | 3 | 8-23 | 250 | 545 |
| 200 | 230 | 340 | 295 | 266 | 26 | 3 | 8-23 | 250 | 683 |
| 250 | 250 | 395 | 355 | 319 | 28 | 3 | 12-23 | 320 | 823 |
| 300 | 270 | 445 | 400 | 370 | 28 | 4 | 12-23 | 320 | 952 |
`
PN16
| DN | L | D | D1 | D2 | b | f | n-d | D0 | H |
| 40 | 140 | 150 | 110 | 80 | 16 | 2 | 4-19 | 160 | 245 |
| 50 | 150 | 165 | 125 | 102 | 16 | 2 | 4-19 | 160 | 255 |
| 65 | 170 | 185 | 145 | 124 | 16 | 2 | 4-19 | 160 | 295 |
| 80 | 180 | 200 | 160 | 140 | 17 | 2 | 8-19 | 160 | 330 |
| 100 | 190 | 220 | 180 | 158 | 17 | 2 | 8-19 | 200 | 385 |
| 125 | 200 | 250 | 210 | 188 | 18 | 3 | 8-19 | 200 | 458 |
| 150 | 210 | 285 | 240 | 212 | 20 | 3 | 8-23 | 250 | 545 |
| 200 | 230 | 340 | 295 | 268 | 21 | 3 | 12-23 | 250 | 683 |
| 250 | 250 | 405 | 355 | 320 | 23 | 3 | 12-28 | 320 | 823 |
| 300 | 270 | 460 | 410 | 378 | 24 | 4 | 12-28 | 320 | 952 |
Product Details

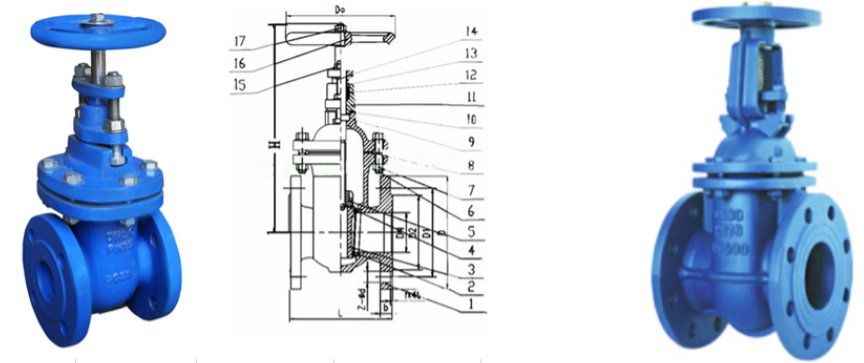

DIN3352 F4 Metal-seal Flanged End Gate Valve
Technical Specifications of DIN3352 F4 Metal-seal Flanged End Gate Valve:
- Design and manufacture: EN1171, EN1074-1 and 2
- Face to face dimension: EN 558-1 Series 14 (DIN3202 F4)
- Flange dimensions and drilling: EN1092-2 PN10/16
- Size range: DN40 - DN300
- Max. working pressure: 1.0/1.6 Mpa
- Inspection test: EN12266
- Working temperature: ≤ 120°C
- Suitable medium: water, oil and gas.
Technical Specifications of DIN3352 F4 Metal-seal Flanged End Gate Valve:
- Design and manufacture: EN1171, EN1074-1 and 2
- Face to face dimension: EN 558-1 Series 14 (DIN3202 F4)
- Flange dimensions and drilling: EN1092-2 PN10/16
- Size range: DN40 - DN300
- Max. working pressure: 1.0/1.6 Mpa
- Inspection test: EN12266
- Working temperature: ≤ 120°C
- Suitable medium: water, oil and gas.
