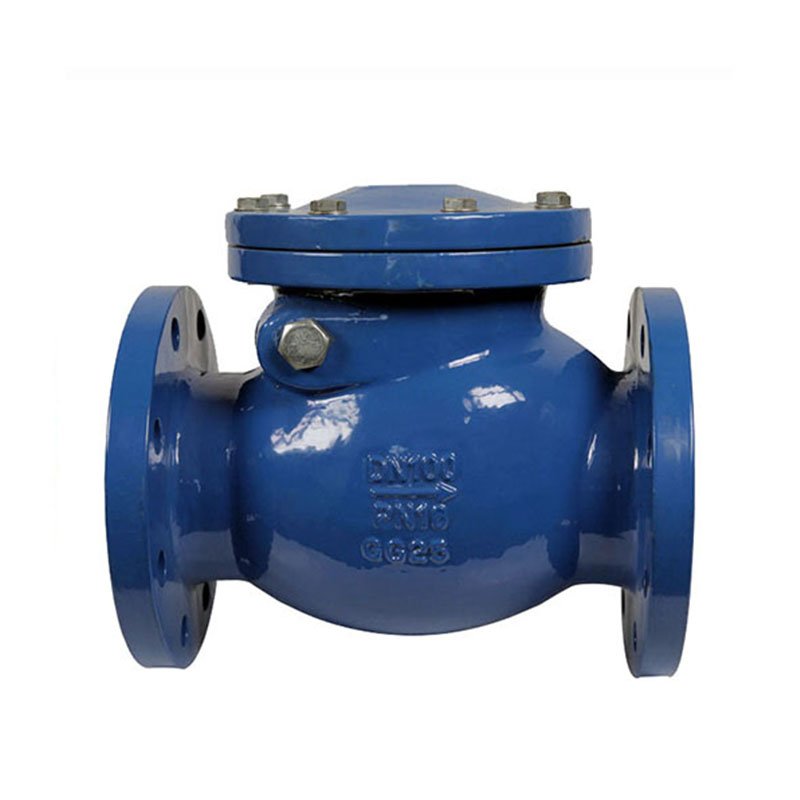

Swing Check Valve

Swing Check Valve

1.size:DN50-DN600;2"-24"

2.Medium:water

3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508

4.Pressure:CLASS 125-300/PN10-25/200-300PSI

5.Material:CI,DI

6.Type:wafer,swing

TECHNICAL REQUIREMENT :

● Design and Manufacture Conform to MSS SP-71

● Flange dimensions Conform to ASME B16.1

● Face to Face dimensions Conform to ASME B16.10

● Testing Conform to MSS SP-71

SPECIFICATION

NOTE: Above 6 inch have eyebolt

Dimensions (mm) of Swing Check Valve:
NPS	2″	2½	3	4	5	6	8	10	12	14	16	18	20	24
Dn	51	63.5	76	102	127	152	203	254	305	356	406	457	508	610
L	203.2	215.9	241.3	292.1	330.2	355.6	495.3	622.3	698.5	787.4	914.4	965	1016	1219
D	152	178	191	229	254	279	343	406	483	533	597	635	699	813
D1	120.7	139.7	152.4	190.5	215.9	241.3	298.5	362	431.8	476.3	539.8	577.9	635	749.3
b	15.8	17.5	19	23.9	23.9	25.4	28.5	30.2	31.8	35	36.6	39.6	42.9	47.8
n-d	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25	12-29	16-29	16-32	20-32	20-35
H	124	129	153	170	196	259	332	383	425	450	512	702	755	856
